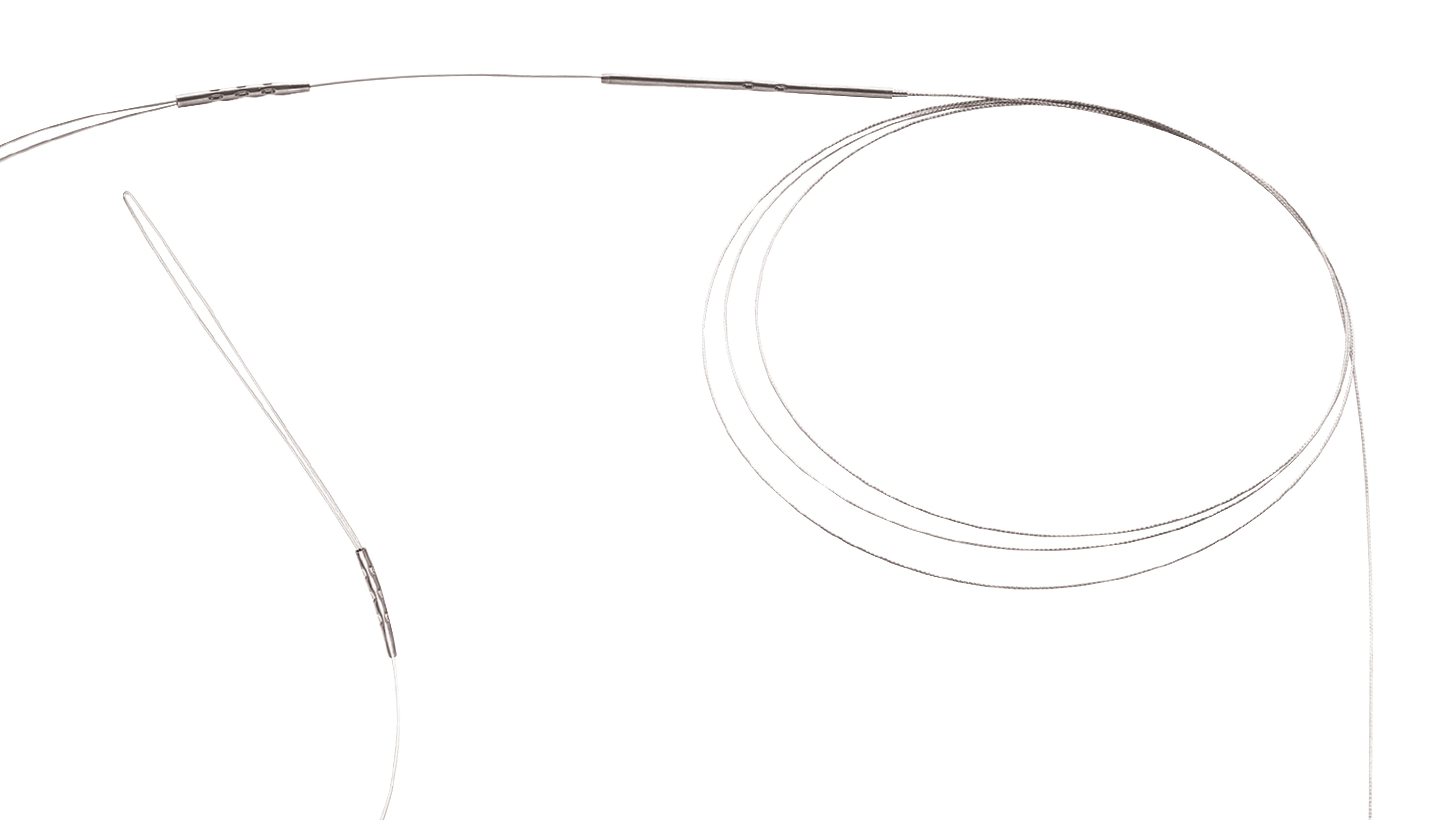

Lead Locking Device

Katalog

Features

EZ sizing

LLD EZ and LLD E accommodate a wide range of leads with inner lumen diameters from 0.015” (0.38mm) to 0.023” (0.58mm).

EZ tracking

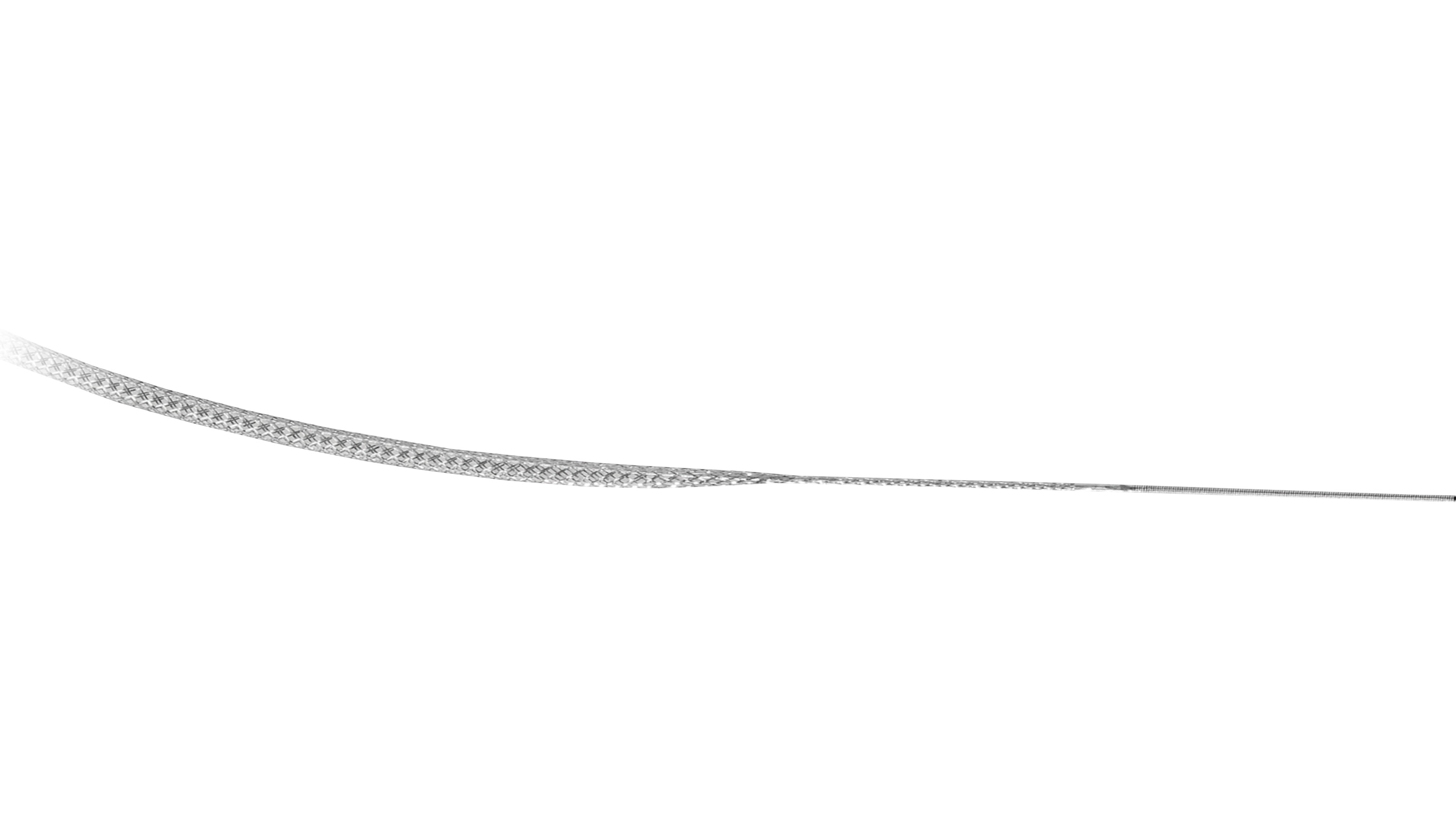

Flexible platinum iridium tip design and sleek profile facilitate tracking and passage through tightly curved leads and past some points of lead lumen damage.

EZ visibility

Permits longer and highly visible radiopaque marker to assist identification of both the LLD E and LLD EZ tip location under fluoroscopy

Specifications

Locks along entire lead lumen Yes
Proven ability to unlock and reposition Yes
Average tensile strength** 19 lbs.
Low-profile loop handles Yes
Locking range (diameter) 0.015”/0.38mm to 0.023”/0.58mm
Working length 65 cm
Packaged with clearing stylet Yes – 0.012”/0.30mm diameter



Model Number 518-062



Locks along entire lead lumen
  • Yes

Proven ability to unlock and reposition
  • Yes

Average tensile strength**
  • 19 lbs.

Low-profile loop handles
  • No

Locking range (diameter)
  • 0.015”/0.38mm to 0.023”/0.58mm

Working length
  • 85 cm

Packaged with clearing stylet
  • Yes – 0.012”/0.30mm diameter

Model Number 518-039



Locks along entire lead lumen
  • Yes

Proven ability to unlock and reposition
  • Yes

Average tensile strength**
  • 12 lbs.

Low-profile loop handles
  • No

Locking range (diameter)
  • 0.013”/0.33mm to 0.016”/0.41mm

Working length
  • 65 cm

Packaged with clearing stylet
  • Yes – 0.012”/0.30mm diameter

Model Number 518-018



Locks along entire lead lumen
  • Yes

Proven ability to unlock and reposition
  • Yes

Average tensile strength**
  • 24 lbs.

Low-profile loop handles
  • No

Locking range (diameter)
  • 0.017”/0.43mm to 0.026”/0.66mm

Working length
  • 65 cm

Packaged with clearing stylet
  • Yes – 0.015”/0.38mm diameter

Model Number 518-019



Locks along entire lead lumen
  • Yes

Proven ability to unlock and reposition
  • Yes

Average tensile strength**
  • 45 lbs.

Low-profile loop handles
  • No

Locking range (diameter)
  • 0.027”/0.69mm to 0.032”/0.81mm

Working length
  • 65 cm

Packaged with clearing stylet
  • Yes – 0.015”/0.38mm diameter

Model Number 518-020



Model number
  • 518-027

Accessory Kit



Model number
  • 518-024

Lead Cutter
